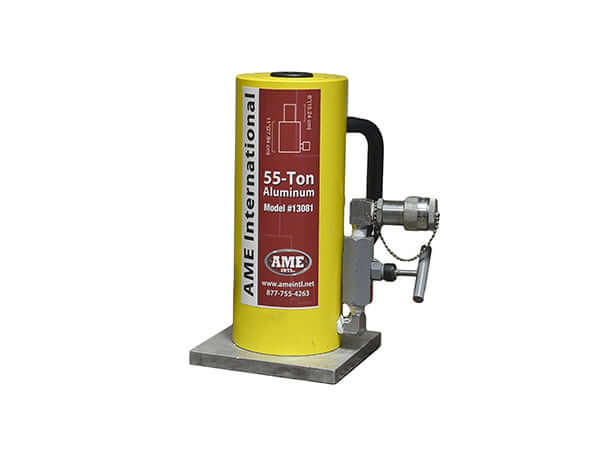

AME Hydraulic Jack Deluxe (55 ton, 6" Stroke, Duo-Ring System)
This hydraulic jack features a shut off valve so that the pump can be removed while the ram is extended. Durability and stability are core design elements.
About this tool:
- The composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
- Includes “Shut-Off Valve” to allow the pump to be removed while ram is extended.
- All surfaces feature a hard coating to resists damage and extend cylinder life

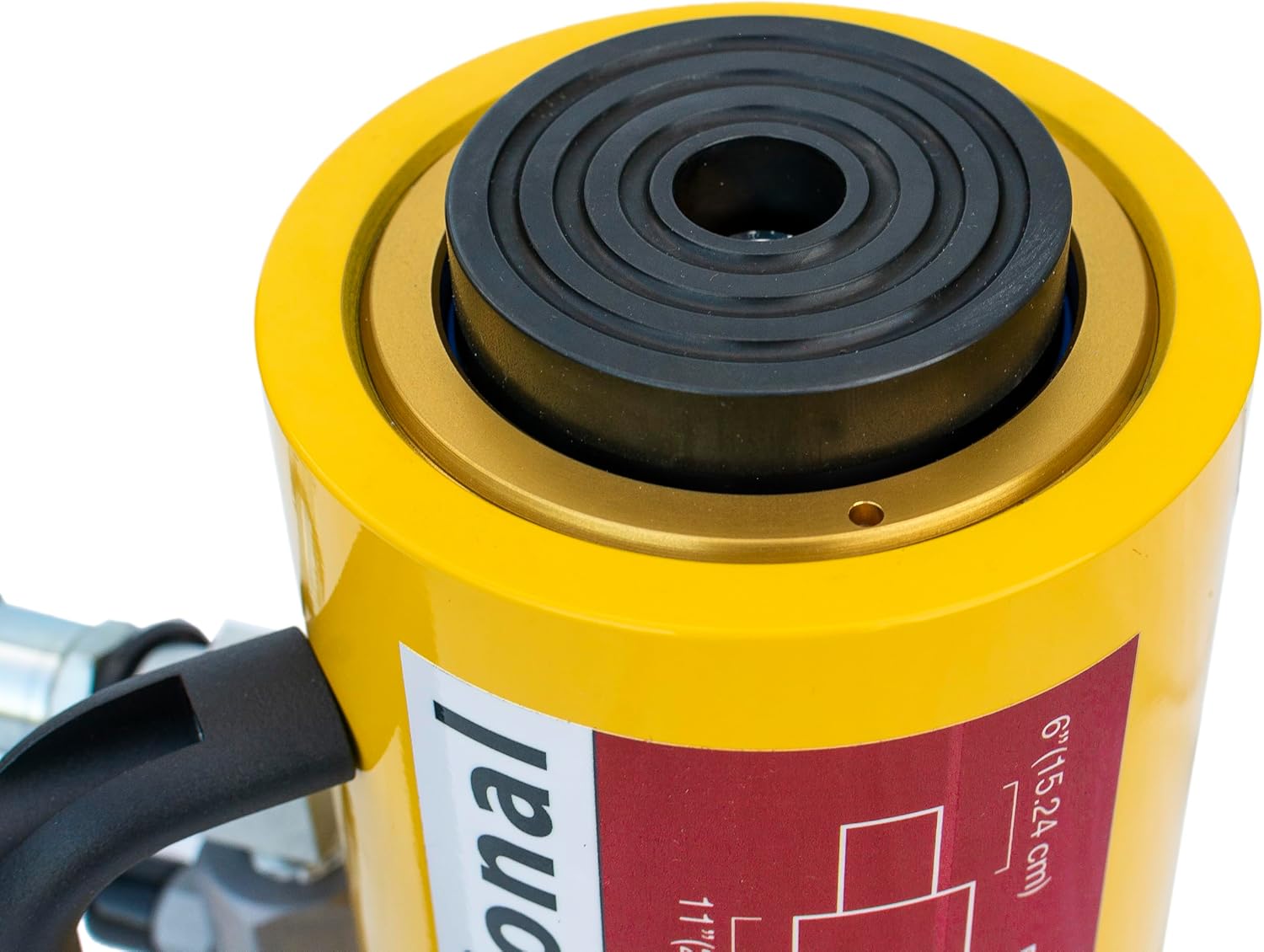

- Includes specific designed saddle and base plate
- The extra thick aluminium cylinder walls are built for heavy duty use and measure 0.80”/ 2 cm.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 Coupler and dust cap included on Shut Off Valve
- Meets ASME B-30. 1 standards
- Manufactured in the USA
Product code: MVSR1000/2370
| Model | 13081 |
| Vehicle service type | Universal |
| Dimensions | 10 x 8.5 x 14.5 inches |

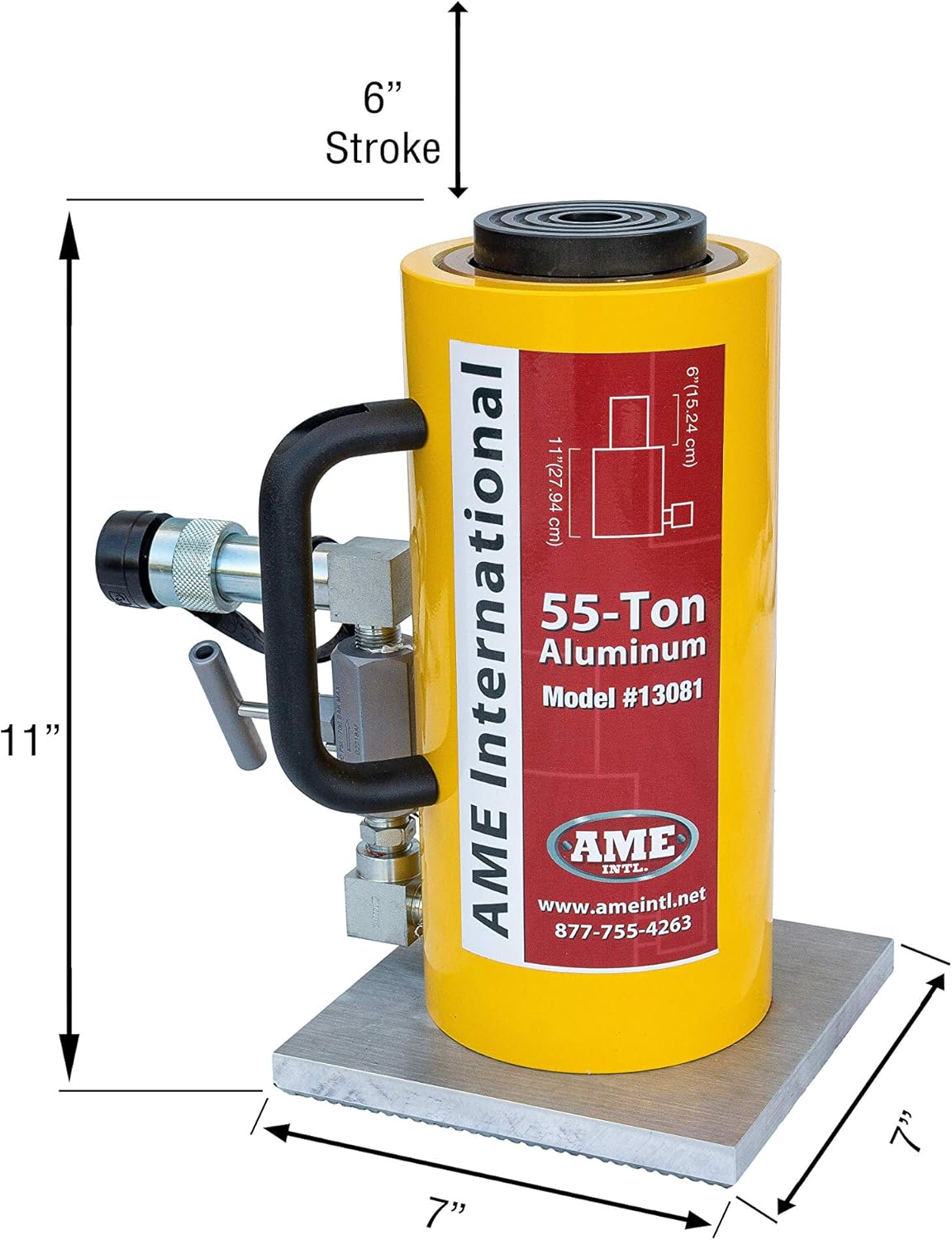

| Stroke ram | 6''/ 15cm |
| Retracted height | 12.25''/ 31.115cm |
| Load capacity | 55 tonnes |
| Weight | 24.5lbs/ 11.1kg |
| Minimum height | 6 inches |
